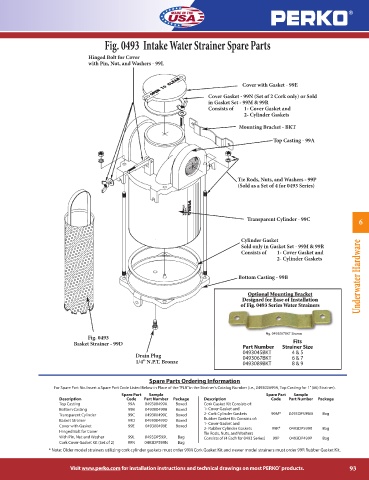

Fig. 0493 Intake Water Strainer Spare Parts

Hinged Bolt for Cover
with Pin, Nut, and Washers - 99L

Cover with Gasket - 99E
Cover Gasket - 99N (Set of 2 Cork only) or Sold
in Gasket Set - 99M & 99R
Consists of 1- Cover Gasket and
2- Cylinder Gaskets

Mounting Bracket - BKT
Top Casting - 99A

Tie Rods, Nuts, and Washers - 99P
(Sold as a Set of 4 for 0493 Series)

Transparent Cylinder - 99C
6

Cylinder Gasket
Underwater Hardware
Sold only in Gasket Set - 99M & 99R
Consists of 1- Cover Gasket and
2- Cylinder Gaskets

Bottom Casting - 99B

Optional Mounting Bracket
Designed for Ease of Installation
of Fig. 0493 Series Water Strainers

Fig. 0493067BKT Shown
Fig. 0493
Basket Strainer - 99D Fits
Part Number Strainer Size
0493045BKT 4 & 5
Drain Plug 0493067BKT 6 & 7
1/4” N.P.T. Bronze 0493089BKT 8 & 9

Spare Parts Ordering Information
For Spare Part No. Insert a Spare Part Code Listed Below in Place of the “PLB” in the Strainer’s Catalog Number (i.e., 049300699A, Top Casting for 1” (#6) Strainer).
Spare Part Sample Spare Part Sample
Description Code Part Number Package Description Code Part Number Package
Top Casting 99A 049300499A Boxed Cork Gasket Kit Consists of:
Bottom Casting 99B 049300499B Boxed 1- Cover Gasket and
Transparent Cylinder 99C 049300499C Boxed 2- Cork Cylinder Gaskets 99M* 0493DP599M Bag
Rubber Gasket Kit Consists of:
Basket Strainer 99D 049300499D Boxed
1- Cover Gasket and
Cover with Gasket 99E 049300499E Boxed
2- Rubber Cylinder Gaskets 99R* 0493DP599R Bag
Hinged Bolt for Cover
Tie Rods, Nuts, and Washers
With Pin, Nut and Washer 99L 0493DP599L Bag Consists of (4 Each for 0493 Series) 99P 0493DP499P Bag
Cork Cover Gasket Kit (Set of 2) 99N 0493DP599N Bag
* Note: Older model strainers utilizing cork cylinder gaskets must order 99M Cork Gasket Kit and newer model strainers must order 99R Rubber Gasket Kit.
Visit www.perko.com for installation instructions and technical drawings on most PERKO products. 93
®
