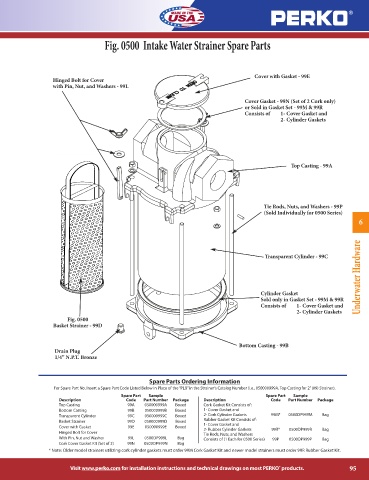

Fig. 0500 Intake Water Strainer Spare Parts

Cover with Gasket - 99E
Hinged Bolt for Cover
with Pin, Nut, and Washers - 99L

Cover Gasket - 99N (Set of 2 Cork only)
or Sold in Gasket Set - 99M & 99R
Consists of 1- Cover Gasket and
2- Cylinder Gaskets

Top Casting - 99A

Tie Rods, Nuts, and Washers - 99P
(Sold Individually for 0500 Series)
6

Underwater Hardware

Transparent Cylinder - 99C

Cylinder Gasket
Sold only in Gasket Set - 99M & 99R
Consists of 1- Cover Gasket and
2- Cylinder Gaskets
Fig. 0500
Basket Strainer - 99D

Bottom Casting - 99B
Drain Plug
1/4” N.P.T. Bronze

Spare Parts Ordering Information
For Spare Part No. Insert a Spare Part Code Listed Below in Place of the “PLB” in the Strainer’s Catalog Number (i.e., 050000999A, Top Casting for 2” (#9) Strainer).
Spare Part Sample Spare Part Sample
Description Code Part Number Package Description Code Part Number Package
Top Casting 99A 050000999A Boxed Cork Gasket Kit Consists of:
Bottom Casting 99B 050000999B Boxed 1- Cover Gasket and
Transparent Cylinder 99C 050000999C Boxed 2- Cork Cylinder Gaskets 99M* 0500DP999M Bag
Rubber Gasket Kit Consists of:
Basket Strainer 99D 050000999D Boxed
1- Cover Gasket and
Cover with Gasket 99E 050000999E Boxed
2- Rubber Cylinder Gaskets 99R* 0500DP999R Bag
Hinged Bolt for Cover
Tie Rods, Nuts, and Washers
With Pin, Nut and Washer 99L 0500DP999L Bag Consists of (1 Each for 0500 Series) 99P 0500DP999P Bag
Cork Cover Gasket Kit (Set of 2) 99N 0500DP999N Bag
* Note: Older model strainers utilizing cork cylinder gaskets must order 99M Cork Gasket Kit and newer model strainers must order 99R Rubber Gasket Kit.
®
Visit www.perko.com for installation instructions and technical drawings on most PERKO products. 95
