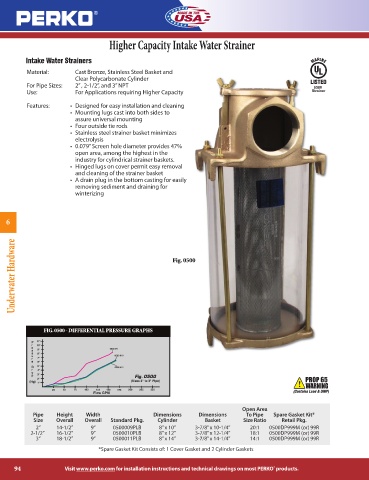

Higher Capacity Intake Water Strainer

Intake Water Strainers
Material: Cast Bronze, Stainless Steel Basket and
Clear Polycarbonate Cylinder
For Pipe Sizes: 2” , 2-1/2”, and 3” NPT
Use: For Applications requiring Higher Capacity

Features: • Designed for easy installation and cleaning
• Mounting lugs cast into both sides to
assure universal mounting
• Four outside tie rods
• Stainless steel strainer basket minimizes
electrolysis
• 0.079” Screen hole diameter provides 47%
open area, among the highest in the
industry for cylindrical strainer baskets.
• Hinged lugs on cover permit easy removal
and cleaning of the strainer basket
• A drain plug in the bottom casting for easily
removing sediment and draining for
winterizing

6

Underwater Hardware Fig. 0500

FIG. 0500 - DIFFERENTIAL PRESSURE GRAPHS

Open Area
Pipe Height Width Dimensions Dimensions To Pipe Spare Gasket Kit*
Size Overall Overall Standard Pkg. Cylinder Basket Size Ratio Retail Pkg.
2” 14-1/2” 9” 0500009PLB 8” x 10” 3-7/8” x 10-1/4” 20:1 0500DP999M (or) 99R
2-1/2” 16-1/2” 9” 0500010PLB 8” x 12” 3-7/8” x 12-1/4” 18:1 0500DP999M (or) 99R
3” 18-1/2” 9” 0500011PLB 8” x 14” 3-7/8” x 14-1/4” 14:1 0500DP999M (or) 99R
*Spare Gasket Kit Consists of: 1 Cover Gasket and 2 Cylinder Gaskets

94 Visit www.perko.com for installation instructions and technical drawings on most PERKO products.
®
