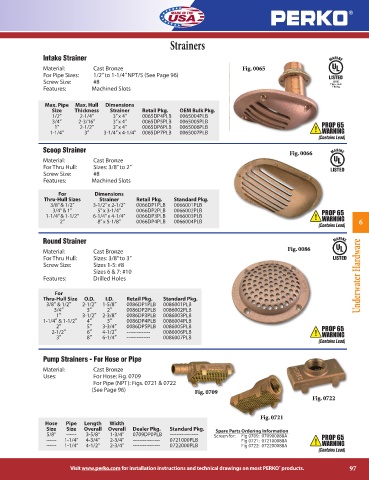

Page 97 - Perko

Strainers

Intake Strainer

Material: Cast Bronze Fig. 0065
For Pipe Sizes: 1/2” to 1-1/4” NPT/S (See Page 96)
Screw Size: #8
Features: Machined Slots

Max. Pipe Max. Hull Dimensions
Size Thickness Strainer Retail Pkg. OEM Bulk Pkg.
1/2” 2-1/4” 3” x 4” 0065DP4PLB 0065004PLB
3/4” 2-3/16” 3” x 4” 0065DP5PLB 0065005PLB
1” 2-1/2” 3” x 4” 0065DP6PLB 0065006PLB
1-1/4” 3” 3-1/4” x 4-1/4” 0065DP7PLB 0065007PLB

Scoop Strainer
Fig. 0066
Material: Cast Bronze
For Thru Hull: Sizes: 3/8” to 2”
Screw Size: #8
Features: Machined Slots

For Dimensions
Thru-Hull Sizes Strainer Retail Pkg. Standard Pkg.
3/8” & 1/2” 3-1/2” x 2-1/2” 0066DP1PLB 0066001PLB
3/4” & 1” 5” x 3-1/4” 0066DP2PLB 0066002PLB
1-1/4” & 1-1/2” 6-1/4” x 4-1/4” 0066DP3PLB 0066003PLB
2” 8” x 5-1/8” 0066DP4PLB 0066004PLB 6

Round Strainer
Fig. 0086
Material: Cast Bronze
For Thru Hull: Sizes: 3/8” to 3”
Screw Size: Sizes 1-5: #8
Sizes 6 & 7: #10
Features: Drilled Holes Underwater Hardware

For
Thru-Hull Size O.D. I.D. Retail Pkg. Standard Pkg.
3/8” & 1/2” 2-1/2” 1-5/8” 0086DP1PLB 0086001PLB
3/4” 3” 2” 0086DP2PLB 0086002PLB
1” 3-1/2” 2-3/8” 0086DP3PLB 0086003PLB
1-1/4” & 1-1/2” 4” 3” 0086DP4PLB 0086004PLB
2” 5” 3-3/4” 0086DP5PLB 0086005PLB
2-1/2” 6” 4-1/2” -------------- 0086006PLB
3” 8” 6-1/4” -------------- 0086007PLB

Pump Strainers - For Hose or Pipe
Material: Cast Bronze
Uses: For Hose: Fig. 0709
For Pipe (NPT): Figs. 0721 & 0722
(See Page 96)
Fig. 0709
Fig. 0722

Fig. 0721
Hose Pipe Length Width
Size Size Overall Overall Dealer Pkg. Standard Pkg. Spare Parts Ordering Information
5/8” ------ 3-5/8” 1-3/4” 0709DP0PLB ----------------- Screen for: Fig 0709: 070900088A
------ 1-1/4” 4-3/4” 2-3/4” ---------------- 0721000PLB Fig 0721: 072100088A
------ 1-1/4” 4-1/2” 2-3/4” ---------------- 0722000PLB Fig 0722: 072200088A

Visit www.perko.com for installation instructions and technical drawings on most PERKO products. 97
®
