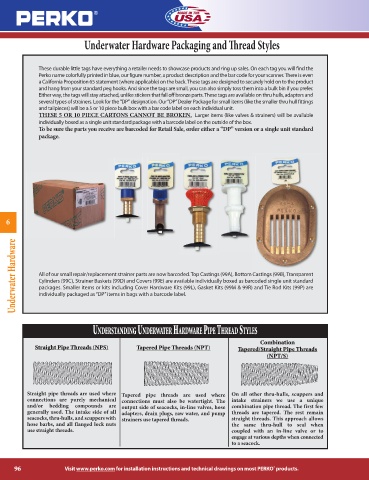

Page 96 - Perko

Underwater Hardware Packaging and Thread Styles

These durable little tags have everything a retailer needs to showcase products and ring up sales. On each tag you will find the
Perko name colorfully printed in blue, our figure number, a product description and the bar code for your scanner. There is even
a California Proposition 65 statement (where applicable) on the back. These tags are designed to securely hold on to the product
and hang from your standard peg hooks. And since the tags are small, you can also simply toss them into a bulk bin if you prefer.
Either way, the tags will stay attached, unlike stickers that fall off bronze parts. These tags are available on thru hulls, adapters and
several types of strainers. Look for the "DP" designation. Our “DP” Dealer Package for small items (like the smaller thru hull fittings
and tailpieces) will be a 5 or 10 piece bulk box with a bar code label on each individual unit.
THESE 5 OR 10 PIECE CARTONS CANNOT BE BROKEN. Larger items (like valves & strainers) will be available
individually boxed as a single unit standard package with a barcode label on the outside of the box.
To be sure the parts you receive are barcoded for Retail Sale, order either a “DP” version or a single unit standard
package.

6

Underwater Hardware All of our small repair/replacement strainer parts are now barcoded. Top Castings (99A), Bottom Castings (99B), Transparent

Cylinders (99C), Strainer Baskets (99D) and Covers (99E) are available individually boxed as barcoded single unit standard
packages. Smaller items or kits including Cover Hardware Kits (99L), Gasket Kits (99M & 99R) and Tie Rod Kits (99P) are
individually packaged as “DP” items in bags with a barcode label.

UNDERSTANDINGUNDERWATERHARDWAREPIPETHREADSTYLES
2
Combination
Straight Pipe Threads (NPS) Tapered Pipe Threads (NPT) Tapered/Straight Pipe Threads
(NPT/S)

Straight pipe threads are used where Tapered pipe threads are used where On all other thru-hulls, scuppers and
connections are purely mechanical connections must also be watertight. The intake strainers we use a unique
and/or bedding compounds are output side of seacocks, in-line valves, hose combination pipe thread. The first few
generally used. The intake side of all adapters, drain plugs, raw water, and pump threads are tapered. The rest remain
seacocks, thru-hulls, and scuppers with strainers use tapered threads. straight threads. This approach allows
hose barbs, and all flanged lock nuts the same thru-hull to seal when
use straight threads. coupled with an in-line valve or to
engage at various depths when connected
to a seacock.

96 Visit www.perko.com for installation instructions and technical drawings on most PERKO products.
®
