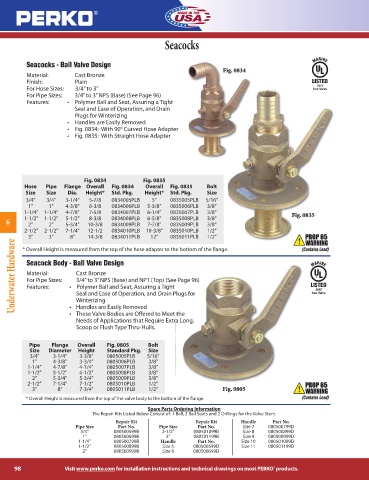

Page 98 - Perko

Seacocks

Seacocks - Ball Valve Design
Fig. 0834
Material: Cast Bronze
Finish: Plain
For Hose Sizes: 3/4” to 3”
For Pipe Sizes: 3/4” to 3” NPS (Base) (See Page 96)
Features: • Polymer Ball and Seat, Assuring a Tight
Seal and Ease of Operation, and Drain
Plugs for Winterizing
• Handles are Easily Removed
• Fig. 0834: With 90° Curved Hose Adapter
• Fig. 0835: With Straight Hose Adapter

Fig. 0834 Fig. 0835
Hose Pipe Flange Overall Fig. 0834 Overall Fig. 0835 Bolt
Size Size Dia. Height* Std. Pkg. Height* Std. Pkg. Size
3/4” 3/4” 3-1/4” 5-7/8 0834005PLB 5” 0835005PLB 5/16”
1” 1” 4-3/8” 6-3/8 0834006PLB 5-3/8” 0835006PLB 3/8”
1-1/4” 1-1/4” 4-7/8” 7-5/8 0834007PLB 6-1/4” 0835007PLB 3/8” Fig. 0835
1-1/2” 1-1/2” 5-1/2” 8-3/8 0834008PLB 6-5/8” 0835008PLB 3/8”
6 2” 2” 5-3/4” 10-3/8 0834009PLB 7-7/8” 0835009PLB 3/8”
2-1/2” 2-1/2” 7-1/4” 12-1/2 0834010PLB 10-3/8” 0835010PLB 1/2”
3” 3” 8” 14-3/8 0834011PLB 12” 0835011PLB 1/2”
Underwater Hardware Seacock Body - Ball Valve Design
* Overall Height is measured from the top of the hose adapter to the bottom of the flange.

Cast Bronze
Material:
3/4” to 3” NPS (Base) and NPT (Top) (See Page 96)
For Pipe Sizes:
Features:
• Polymer Ball and Seat, Assuring a Tight
Seal and Ease of Operation, and Drain Plugs for
Winterizing
• Handles are Easily Removed
• These Valve Bodies are Offered to Meet the
Needs of Applications that Require Extra Long,
Scoop or Flush Type Thru-Hulls.

Pipe Flange Overall Fig. 0805 Bolt
Size Diameter Height Standard Pkg. Size
3/4” 3-1/4” 3-3/8” 0805005PLB 5/16”
1” 4-3/8” 3-3/4” 0805006PLB 3/8”
1-1/4” 4-7/8” 4-1/4” 0805007PLB 3/8”
1-1/2” 5-1/2” 4-1/2” 0805008PLB 3/8”
2” 5-3/4” 5-3/4” 0805009PLB 3/8”
2-1/2” 7-1/4” 7-1/2” 0805010PLB 1/2”
3” 8” 7-3/4” 0805011PLB 1/2” Fig. 0805
* Overall Height is measured from the top of the valve body to the bottom of the flange.
Spare Parts Ordering Information
The Repair Kits Listed Below Consist of: 1 Ball, 2 Ball Seats and 2 O-Rings for the Valve Stem.
Repair Kit Repair Kit Handle Part No.
Pipe Size Part No. Pipe Size Part No. Size 7 080500799D
3/4” 080500599B 2-1/2” 080501099B Size 8 080500899D
1” 080500699B 3” 080501199B Size 9 080500999D
1-1/4” 080500799B Handle Part No. Size 10 080501099D
1-1/2” 080500899B Size 5 080500599D Size 11 080501199D
2” 080500999B Size 6 080500699D

98 Visit www.perko.com for installation instructions and technical drawings on most PERKO products.
®
